STANDARD DUTY SERIES ROTO-PHASE I
Standard Features:
- Heavy Duty Construction
- ODP or TEFC Rotary Base Available
- NEMA 3R Panel
- Continuous Duty Cycle
- Easy Installation
- 1-YEAR WARRANTY
The Standard Duty Roto-Phase is designed to operate multiple motors simultaneously with ONE three-phase motor equal to the largest motor rating of the rotary phase converter, and the remaining three-phase motor loads are smaller in horsepower rating for a combined operated load equal or less than the Recommended Horsepower Capacity of the phase converter. The Standard Duty Series design is the industry leader for its quality, performance, and dependability in providing economical three-phase power. The Roto-Phase I units are built from a larger rotary frame design than most converter manufacturers; therefore delivering a superior three-phase converter system. All models are rated in horsepower rather than KVA, and they list the specific ratings of the rotary phase converter (LARGEST MOTOR HP & TOTAL HP CAPACITY). The largest motor horsepower rating is in true horsepower, and it is not intended to operate mis-rated motor or motor loads. If the largest motor horsepower rating is starting or running in continuous overload or has a low power factor rating, then the next larger Roto-Phase I Standard Duty or Roto-Phase II Heavy Duty may be required. When two motors match the largest motor rating of the phase converter, a larger Roto-Phase converter is usually required…CONSULT FACTORY.
CAUTION: FOR FOREIGN MOTOR DESIGNS, 2-SPEED WINDINGS, AND INSTANT-REVERSING APPLICATION CONSULT FACTORY FOR SIZING
Model | Largest Motor | Avg. Max Operated HP Capacity |
---|---|---|
MF | 1 | 3 |
MG | 1.5 | 5 |
M | 3 | 7 |
A | 5 | 12 |
R | 7.5 | 17 |
B | 10 | 25 |
C | 15 | 40 |
G | 20 | 50 |
P | 25 | 65 |
PKT | 30 | 70 |
PKO | 40 | 70 |
K-2G | 50 | 100 |
Y-2P | 60 | 110 |
L-2S | 75 | 125 |
W-3P | 100 | 150 |
BUILD-IN CONTROL PACKAGE OPTIONS
- Magnetic Starter With Overload Protection (Puch Button Start/Stop or Automatic Option)
- Fused Disconnect
- Surge Arrestor
- Voltage Regulation For Small Motor Load Operation
- High Torque Kit

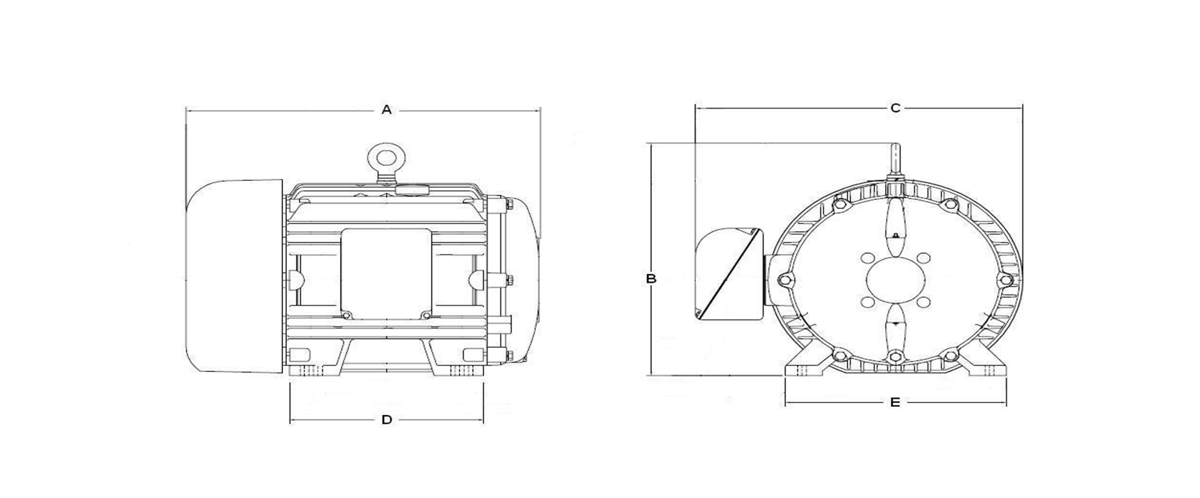

SPECIFICATIONS | Approx Ship Wt. | |||||||
---|---|---|---|---|---|---|---|---|
MODELS | A | B | C | D | E | PANEL | AUX BANK | |
MF | 12.00" | 11.00" | 11.00" | 7.00" | 9.00" | 10x8x6 | 67 Lbs. | |
MG | 12.00" | 11.00" | 11.00" | 7.00" | 9.00" | 10x8x6 | 84 Lbs. | |
M | 13.00" | 11.00" | 10.00" | 7.00" | 9.00" | 10x8x6 | 96 Lbs. | |
A | 16.00" | 13.00" | 13.00" | 8.00" | 10.00" | 16x12x6 | 171 Lbs. | |
R | 17.00" | 14.00" | 13.00" | 10.00" | 12.00" | 16x12x6 | 222 Lbs. | |
B | 19.00" | 16.00" | 16.00" | 12.00" | 12.00" | 16x12x6 | 275 Lbs. | |
C | 23.00" | 18.00" | 21.00" | 13.00" | 13.00" | 18x18x10 | 482 Lbs. | |
G | 25.00" | 20.00" | 24.00" | 14.00" | 15.00" | 18x18x10 | 643 Lbs. | |
P | 25.00" | 20.00" | 24.00" | 14.00" | 15.00" | 18x18x10 | 687 Lbs. | |
PKT(1) | 25.00" | 20.00" | 24.00" | 14.00" | 15.00" | 18x18x10 | 10x10x6 | 697 Lbs |
PKO(1) | 25.00" | 20.00" | 24.00" | 14.00" | 15.00" | 18x18x10 | 12x12x8 | 700 Lbs. |
K2G(**)(1) | 25.00" | 20.00" | 24.00" | 14.00" | 15.00" | 18x18x10 | 10x10x6 | 1296 Lbs. |
Y2P(**)(1) | 25.00" | 20.00" | 24.00" | 14.00" | 15.00" | 18x18x10 | 8x8x6 | 1384 Lbs. |
L2S(**)(1) | 27.00" | 22.00" | 25.00" | 15.00" | 17.00" | 24x24x10 | 12x12x8 | 1975 Lbs. |
W3P(***)(1) | 25.00" | 20.00" | 24.00" | 14.00" | 15.00" | 18x18x10 | 18x12x8 | 2071 Lbs. |
(**)Two Units Paralleled (***)Three Units Paralleled (1)Includes Separate Auxiliary Capacitor Bank
NOTE: When ordering the phase converter with the magnetic starter control package, you will need to add the Prefix Letter “C” (Automatic unit with starter, OL protection, and time-delay relay), or Prefix Letter “C/” (Manual unit with starter, OL protection, and push button START/STOP station).
With the addition of optional features, the panel size of the phase converter model may change – Please Consult Factory.
ARCO Electric Products reserves the right to make product changes without prior notification.
