Standard Duty Series I


Built-In Options

Magnetic Starter Package

Overload Protection

HOA Selector Switch

Surge Arrestor

Description

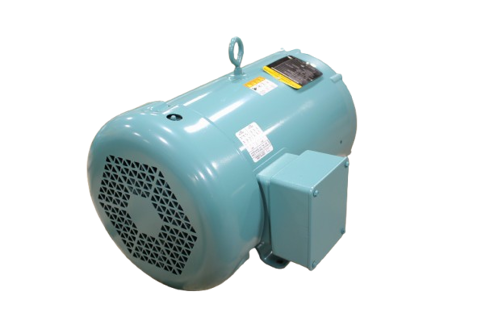

The Standard Duty Roto-Phase is designed to operate multiple motors simultaneously with ONE three-phase motor equal to the largest motor rating of the rotary phase converter, and the remaining three-phase motor loads are smaller in horsepower rating for a combined operated load equal or less than the Recommended Horsepower Capacity of the phase converter.  The Standard Duty Series design is the industry leader for its quality, performance, and dependability in providing economical three-phase power. The Roto-Phase I units are built from a larger rotary frame design than most converter manufacturers; therefore delivering a superior three-phase converter system.

All models are rated in horsepower rather than KVA, and they list the specific ratings of the rotary phase converter (LARGEST MOTOR HP & TOTAL HP CAPACITY). The largest motor horsepower rating is in true horsepower, and it is not intended to operate mis-rated motor or motor loads. If the largest motor horsepower rating is starting or running in continuous overload or has a low power factor rating, then the next larger Roto-Phase I Standard Duty or Roto-Phase II Heavy Duty may be required. When two motors match the largest motor rating of the phase converter, a larger Roto-Phase converter is usually required…CONSULT FACTORY.

CAUTION: FOR FOREIGN MOTOR DESIGNS, 2-SPEED WINDINGS, AND INSTANT-REVERSING APPLICATION CONSULT FACTORY FOR SIZING

Model Table

Model
Largest Motor
Avg. Max Operated HP Capacity
MF
1
3
MF
1.5
5
M
3
7
A
5
12
R
7.5
17
B
10
25
C
15
40
G
20
50
P
25
65
PKT
30
70
PKO
40
70
K-2G
50
100
Y-2P
60
110
L-2S
75
125
W-3P
100
150

Specification Table

Model
A
B
C
D
E
Panel
Aux Bank
Approx Ship Wt.
MF
12.00"
11.00"
11.00"
7.00"
9.00"
10x8x6

67 Lbs.
MG
12.00"
11.00"
11.00"
7.00"
9.00"
10x9x6

84 Lbs.
M
13.00"
11.00"
10.00"
7.00"
9.00"
10x9x6

96 Lbs.
A
16.00"
13.00"
13.00"
8.00"
10.00"
16x12x6

171 Lbs.
R
17.00"
14.00"
13.00"
10.00"
12.00"
16x12x6

222 Lbs.
B
19.00"
16.00"
16.00"
12.00"
12.00"
16x12x6

275 Lbs.
C
23.00"
18.00"
21.00"
13.00"
13.00"
18x18x10

482 Lbs.
G
25.00"
20.00"
24.00"
14.00"
15.00"
18x18x10

643 Lbs.
P
25.00"
20.00"
24.00"
14.00"
15.00"
18x18x10

687 Lbs.
PKT
25.00"
20.00"
24.00"
14.00"
15.00"
18x18x10
10x10x6
697 Lbs.
PKO
25.00"
20.00"
24.00"
14.00"
15.00"
18x18x10
12x12x8
700 Lbs.
K-2G(**)(1)
25.00"
20.00"
24.00"
14.00"
15.00"
18x18x10
10x10x6
1296 Lbs.
Y-2P(**)(1)
25.00"
20.00"
24.00"
14.00"
15.00"
18x18x10
8x8x6
1384 Lbs.
L-2S(**)(1)
27.00"
22.00"
25.00"
15.00"
17.00"
24x24x10
12x12x8
1975 Lbs.
W-3P(***)(1)
25.00"
20.00"
24.00"
14.00"
15.00"
18x18x10
18x12x8
2071 Lbs.

Table Legend

(**)Two Units Paralleled (***)Three Units Paralleled (1)Includes Separate Auxiliary Capacitor Bank

NOTE: When ordering the phase converter with the magnetic starter control package, you will need to add the Prefix Letter “C” (Automatic unit with starter, OL protection, and time-delay relay), or Prefix Letter “C/” (Manual unit with starter, OL protection, and push button START/STOP station).

With the addition of optional features, the panel size of the phase converter model may change – Please Consult Factory.

ARCO Electric Products reserves the right to make product changes without prior notification.
